Garmin ECHOMAP UHD2 9" sv Chartplotters
Click image to open expanded view

Garmin ECHOMAP UHD2 9" sv Chartplotters

Sale price
$1,299.99
In stock! Usually ships within 24 hours.
UNLOCK 10% OFF
Vendor: Garmin
SKU: 010-02689-01


Description

94sv with GT56UHD-TM Transducer and Garmin Navionics+ U.S. Coastal & Great Lakes Mapping

KNOW THE WATER BETTER THAN A LOCAL

When it comes to catching more fish, they say, “Talk to a local.” With the ECHOMAP UHD2 chartplotter, which offers our best-in-class sonar and mapping and premium touchscreen display with keyed-assist, you’ll know the water even better than they do.

The bright 6”, 7” or 9” touchscreen display with keyed-assist is user-friendly and easy to read.

Good things come in threes. Three sonar types, that is: Garmin traditional, ClearVü™ and SideVü™ sonars.

Improved detail? Check. Distinguished targets? Yep. That’s the beauty of high-contrast vivid color palettes.

If you’re running another ECHOMAP UHD2 chartplotter, you can wirelessly share sonar, waypoints and routes.

Want our best in mapping? Who doesn’t? Select chartplotters come with Garmin Navionics+™ mapping.

SONAR SUPPORT

With crisp, clear traditional sonar and brilliant ClearVü and SideVü scanning sonars, the fish will have nowhere to hide. Your ECHOMAP UHD2 also supports LiveScope™ live-scanning sonar.

VIVID COLOR PALETTES

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

BUNDLE YOUR TRANSDUCER

Your ECHOMAP UHD2 device supports a variety of Garmin transducers. The 6” and 7” chartplotters come bundled with a GT54 transducer — while the 9” chartplotter comes with a GT56 transducer.

PRELOADED CHARTS

You’ve never seen Garmin cartography like this before. Select chartplotters come with built-in Garmin Navionics+ cartography which includes a 1-year subscription for daily updates, depth range shading and more.

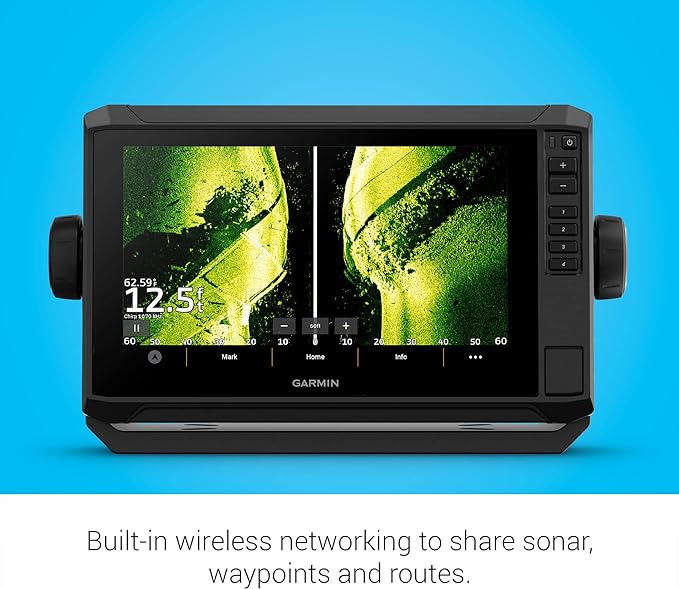

WIRELESS NETWORKING

If you have another compatible ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar1, waypoints and routes — with them.

ACTIVECAPTAIN® APP

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app on your compatible smartphone for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw™ Community data and more2.

AUTO GUIDANCE+™ TECHNOLOGY

Chartplotters with built-in Garmin Navionics+ charts include downloadable Auto Guidance+ technology3 with the ActiveCaptain app.

TROLL WITH FORCE®

Your ECHOMAP UHD2 wirelessly connects to your Force trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more.

POWER-POLE® SHALLOW WATER ANCHOR

By networking select Garmin chartplotters with a Force® trolling motor and your compatible Power-Pole shallow water anchoring system, you can access advanced boat control features4 from your plotter, including smart anchor auto-deployment, smart anchor jog, auto stow, anchor drag detection and auto guidance5 end-of-route anchoring. Spend more time fishing, less time positioning.

CHARGE INTEGRATION FROM POWER-POLE

Your CHARGE Marine Power Manager from Power-Pole integrates with compatible Garmin chartplotters to help keep your battery power going longer and stronger on the water. You’re able to charge batteries on the run, monitor power use, select where power is allocated, control emergency starts and even transfer power between battery banks — all from your chartplotter display.

MULTI-BAND GPS

Get improved position accuracy, particularly in areas where signals are reflected or weak, with multi-band GPS.

SPECS

General
DIMENSION 10.4" x 6.5" x 3.2" (26.4 x 16.6 x 8.0 cm)
WEIGHT

2.9 lbs (1.3 kg)
WATER RATING

IPX7
TOUCHSCREEN
DISPLAY TYPE WSVGA, TN
DISPLAY SIZE 7.8" x 4.5", 9.0" (19.8 x 11.5 cm, 22.9 cm)
DISPLAY RESOLUTION 1024 x 600 pixels
MOUNTING OPTIONS Bail or flush
INPUT Touchscreen with Keyed Assist

Maps & Memory
ACCEPTS DATA CARDS

1 microSD™ card; 32 GB maximum size
WAYPOINTS

5,000
TRACK POINTS 50,000
TRACKS 50 saved tracks
NAVIGATION ROUTES 100

Sensors
GPS
GLONASS
GALILEO
BEIDOU
HAS BUILT-IN RECEIVER
RECEIVER

10 Hz
NMEA 2000 COMPATIBLE
SUPPORTS WAAS
SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS

Built-in Maps
BUILT-IN AUTO GUIDANCE+ yes (downloadable via ActiveCaptain app)
GARMIN NAVIONICS+ INLAND & COASTAL yes (see Additional)
GARMIN NAVIONICS+ (COASTAL) yes (see Additional)
GARMIN NAVIONICS+ (INLAND) yes (see Additional)
TIDE TABLES yes (see Additional)

Optional Map Support
BLUECHART G3
BLUECHART G3 VISION
LAKEVÜ G3
LAKEVÜ G3 ULTRA
GARMIN NAVIONICS+™
GARMIN NAVIONICS VISION+™
TOPO 100K
STANDARD MAPPING
GARMIN QUICKDRAW CONTOURS

Chartplotter Features
AIS
DSC
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS
ACTIVECAPTAIN® COMPATIBLE
SAILING FEATURES

Electrical Features
POWER INPUT 9 to 18 Vdc
TYPICAL CURRENT DRAW AT 12 VDC 1.72 A
MAXIMUM CURRENT DRAW AT 12 VDC 3.5 A
MAXIMUM POWER USAGE AT 10 VDC 20.7W

Sonar Features
DISPLAYS SONAR
POWER OUTPUT 500 W
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
CLEARVÜ built-in 260/455/800/1000/1200 kHz
SIDEVÜ built-in 260/455/800/1000/1200 kHz
PANOPTIX™ SONAR
LIVESCOPE

Connections
NMEA 2000® PORTS
GARMIN MARINE NETWORK PORTS

1
12-PIN TRANSDUCER PORTS 1
BLUETOOTH® PAIRING
ANT+ (CONNECTIVITY)
GARMIN WI-FI NETWORK (LOCAL CONNECTION)

Additional
ADDITIONAL
  • Garmin Navionics+ (inland and coastal): 95sv Canada, Australia and New Zealand
  • Garmin Navionics+ (coastal): 94sv U.S. coastal, 95sv UK/Ireland
  • Garmin Navionics+ (inland): 93sv U.S. lakes
  • Tide tables: 93sv, 94sv, 95sv



IN THE BOX

With Transducer

  • ECHOMAP UHD2 (device varies depending on selection)
  • GT56-TM transducer
  • Power cable
  • Tilt mount with quick-release cradle
  • Protective cover
  • Hardware
  • Documentation

Without Transducer

  • ECHOMAP UHD2 (device will vary depending on selection)
  • 12-pin sounder to 8-pin transducer cable
  • Power cable
  • Tilt mount with quick-release cradle
  • Protective cover
  • Hardware
  • Documentation
