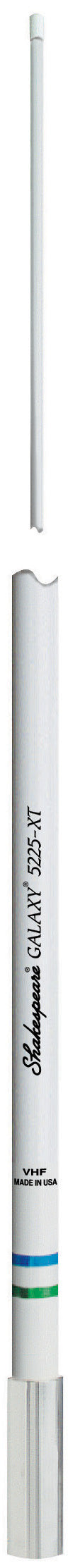

Shakespeare Marine Galaxy VHF Marine Band 6DB Antenna 5225-XT

Sale price
$189.99
Size:8'
Color:Stainless Steel
Only 5 left in stock!
UNLOCK 10% OFF

Description

For the toughest of the tough jobs, the Galaxy® VHF Marine Band 6dB Antenna is a maximum range antenna built in a Shakespeare extra tough fiberglass radome. It's designed to withstand the wind forces and high speeds when used, and adds extended performance for extra reliable communications when your out on the water.
  • Maximum Power Input:
  • 100 watts
  • SWR Nominally:
  • 1.5:1 at 156.8 MHz
  • Bandwidth:
  • 3 MHz within 2.0:1 VSWR
  • Frequency: VHF Marine Band
  • Antenna Gain:
  • 6dB
  • Ferrule:
  • Stainless Steel with standard 1"-14 thread
  • Coax Supplied:
  • 20 ft of RG-8/X low-loss cable
  • Connector Supplied:
  • PL-259 (Not installed)
  • Polarity:
  • Vertical
  • Impedance:
  • 50 Ohms
  • No DC Ground. The antenna will read shorted on continuity test
  • Suggested mount:
  • 4187 or 5187 (Not Included)
  • Brass and copper elements for maximum range and efficiency
  • Galaxy White finish
  • One Section
